VS3000E Software

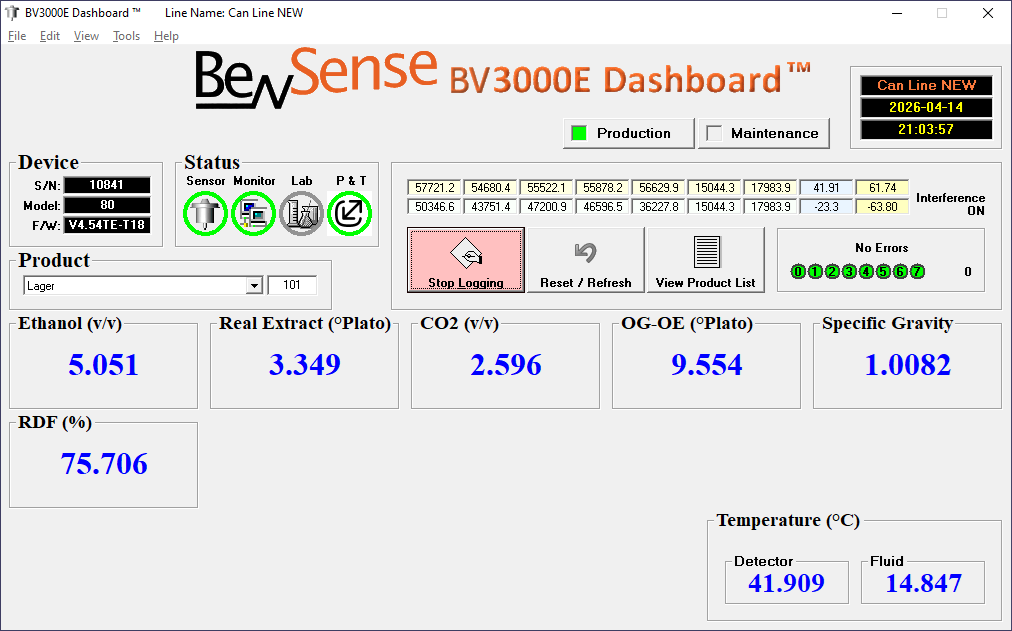

VS-3000 Dashboard

The VS-3000 Dashboard is the control center for each VS-3000 Sensor System. The Dashboard handles all sensor-related functions such as concentration calculation, PLC communication, recipe changes and alarming. The VS-3000 Dashboard is network-ready and can be accessed anywhere in the plant. The Dashboard also has the capability to be managed off-site via TeamViewer or VPN. The user interface is simple and intuitive, and a license for the VS-3000 Dashboard is included with every purchase.

VitalSensors - VS-3000 Dashboard Software

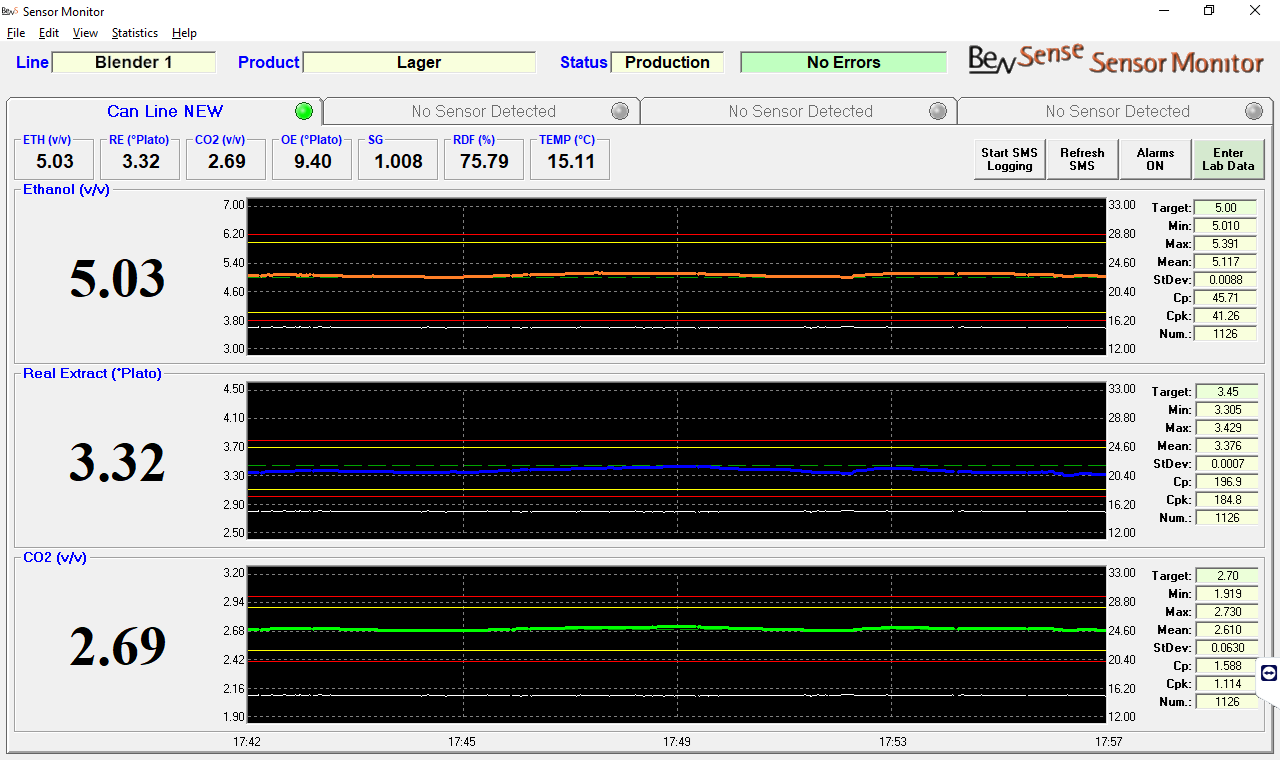

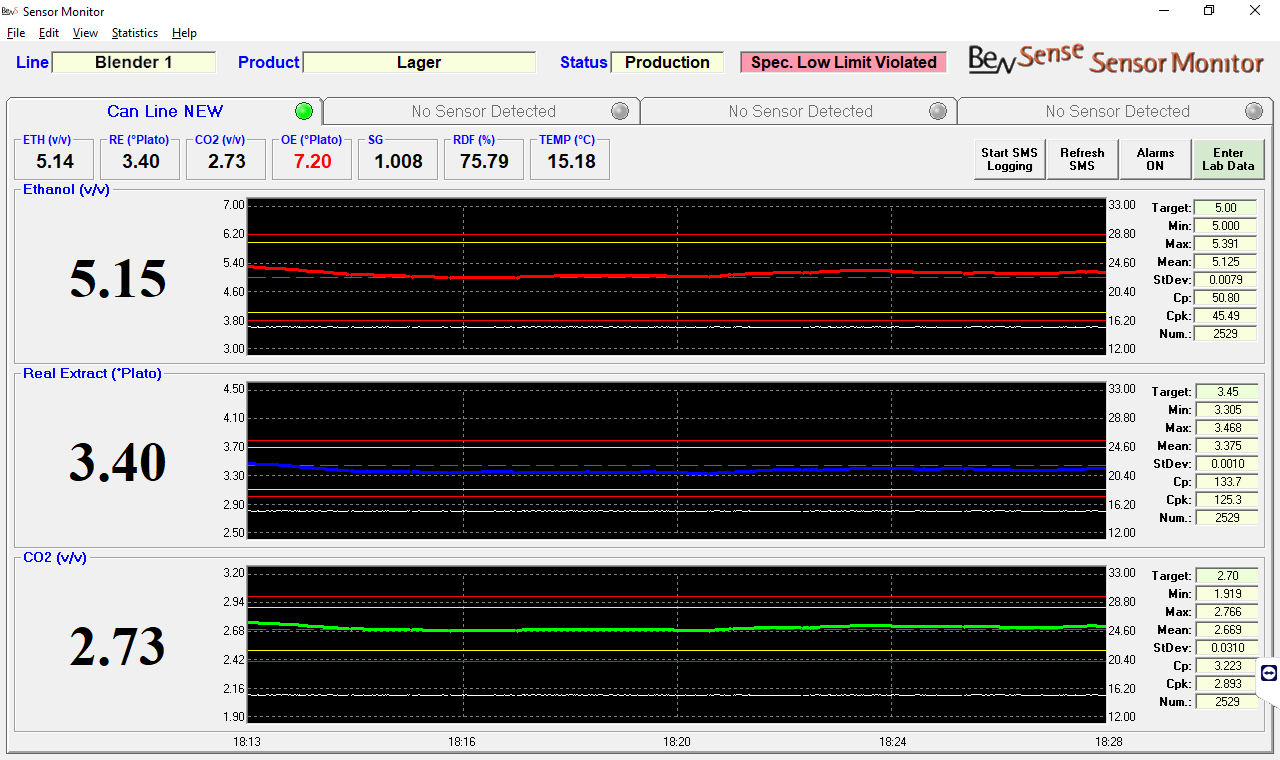

Sensor Monitor

The Sensor Monitor is a Windows-based PC client software application designed to ease the use of the BevSense Automatic Calibration using the BevSense Robot AI software. For a user to have real-time sensor control at their fingertips, all that is required is an Ethernet connection. Easy-to-read displays repeat data collected by the Sensor Management Station and provide graphs and intuitive log files. The Sensor Monitor has the ability to control sensors remotely allowing the user to easily Add New Products, Set Concentration Target, Set Concentration Alarms and Control limits and enter lab data into the VS3000 from the laboratory where it is being taken. The Sensor Monitor is installed on a PC in the QA laboratory next to the lab equipment used to measure ingredient concentrations.

VitalSensors - Sensor Monitor Software

Features of the Sensor Monitor:

  • Compatible with Windows® XP, Windows® 7 and Windows® 8
  • Designed specifically for QC/QA professionals
  • Enables remote adjustment and monitoring of four sensors from anywhere on the factory network
  • Provides an intuitive user interface
  • Enables brand and recipe selection
  • Uses limits and alarming
  • Logging function / Excel-compatible

CalFAST-3000

CalFAST-3000 is a calibration and data-management tool for VS-3000 Sensor Systems. CalFAST allows for quick “dialing-in” of new recipes and products. CalFAST provides a historical trending/modeling tool and is easily implemented on an enterprise network. A CalFAST -3000 license is included with every purchase. For the VS3000E series of sensors the CalFAST robot software runs in the background as an Extension to the Sensor Monitor. When new laboratory samples are entered into the Sensor Monitor Software the CalFAST robot will improve the online sensor calibration automatically if the new lab point improves the overall sensor error to the laboratory. It does this directly after brand change.

VitalSensors - CalFAST-3000 Software

VS3000E Software

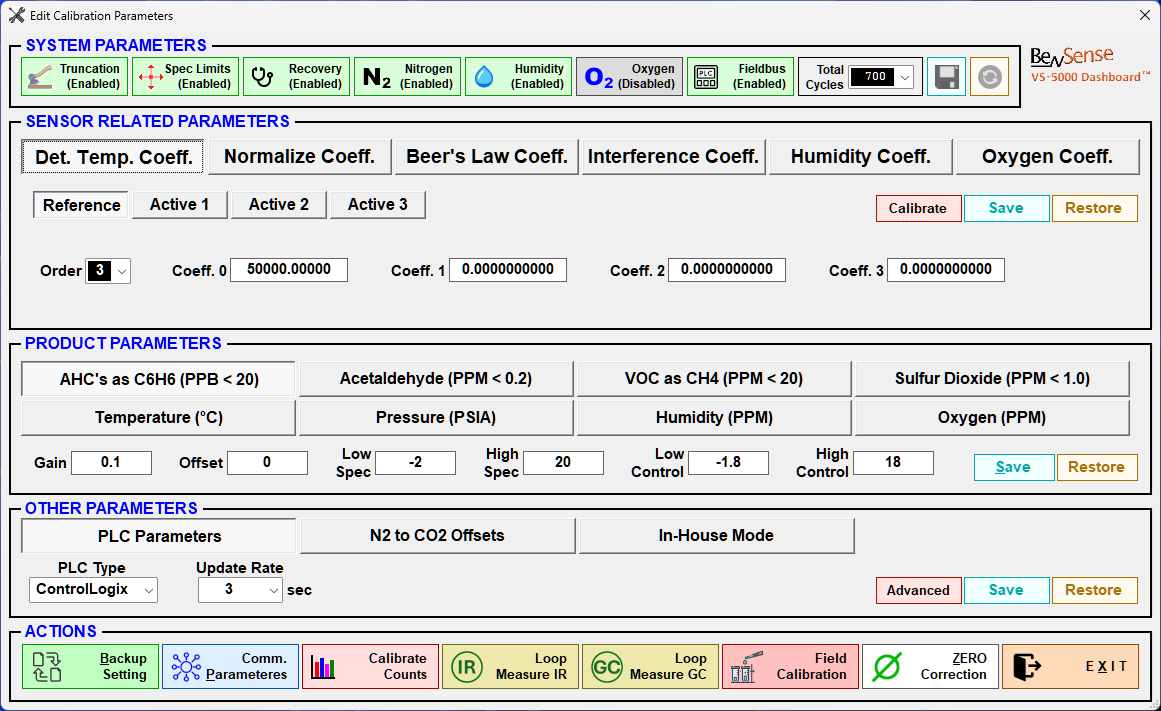

VS5000 Dashboard

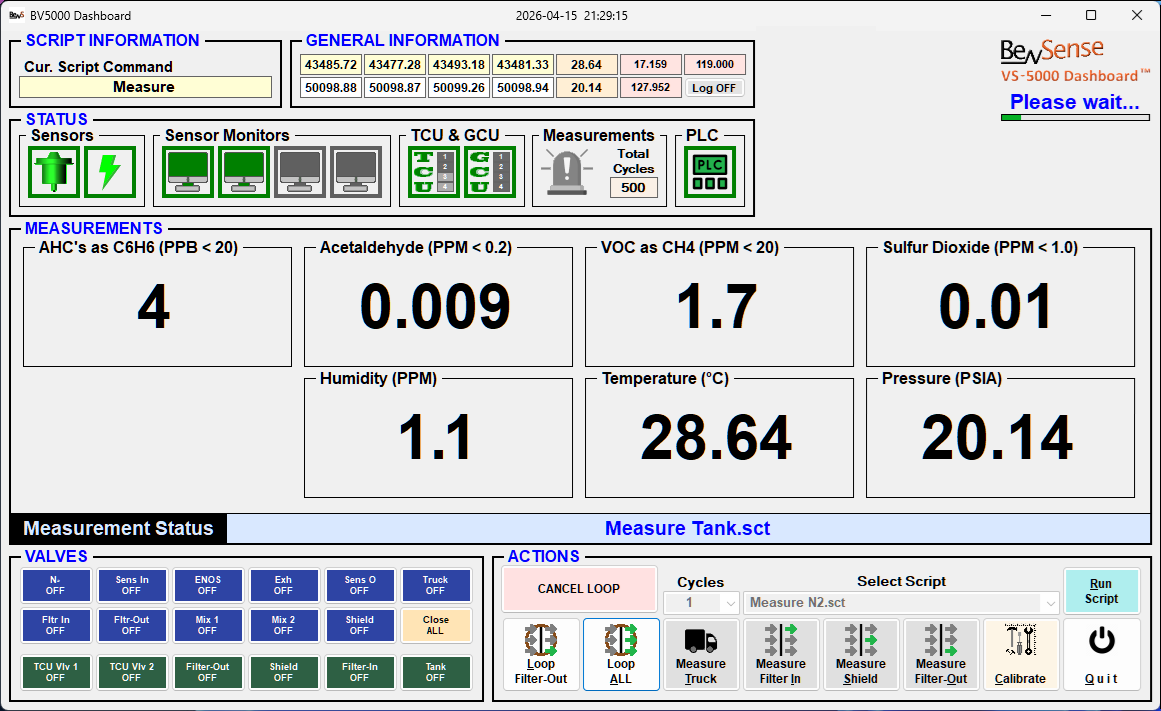

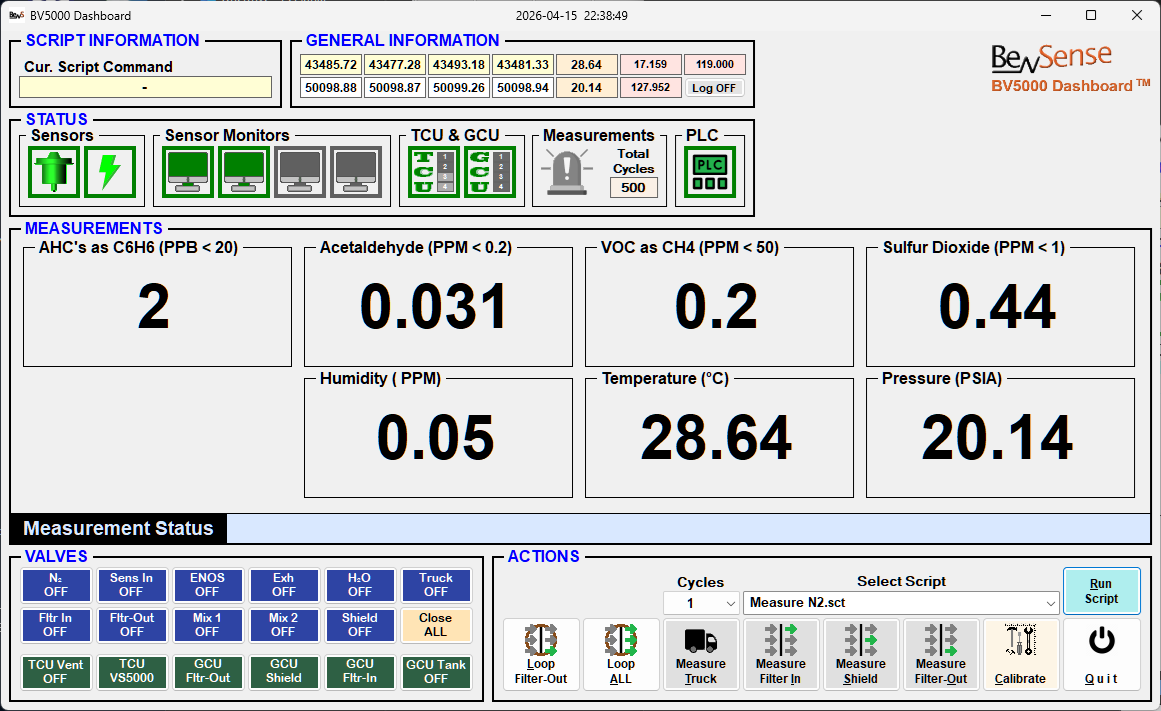

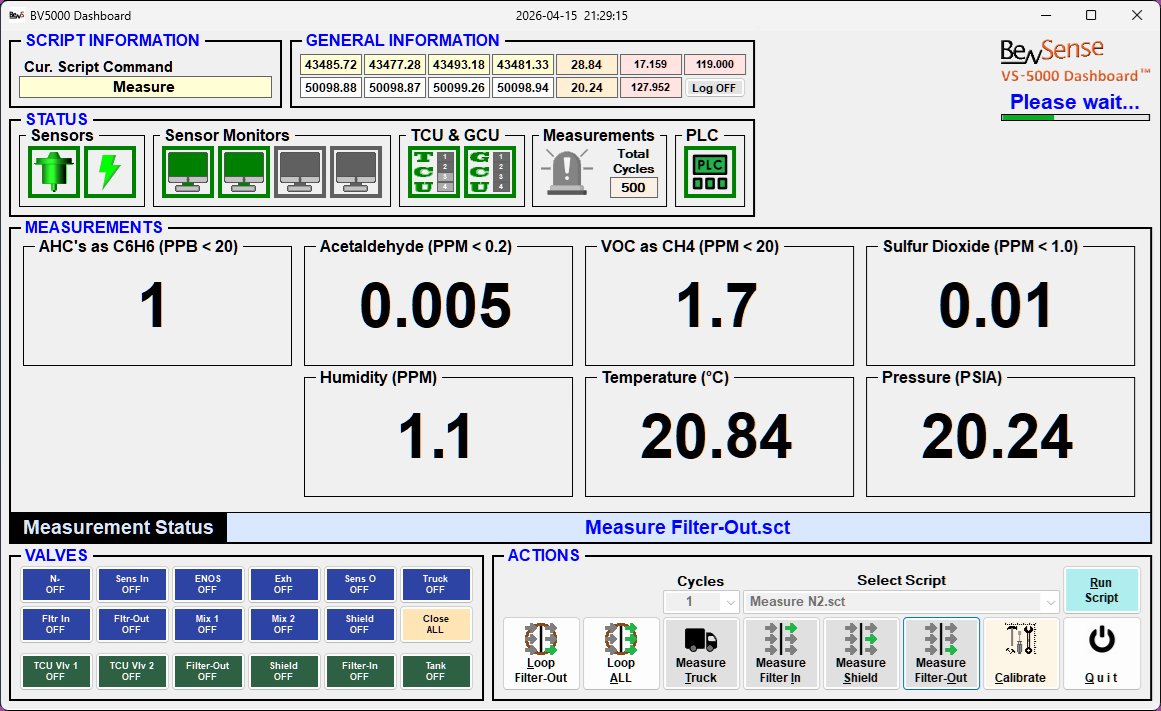

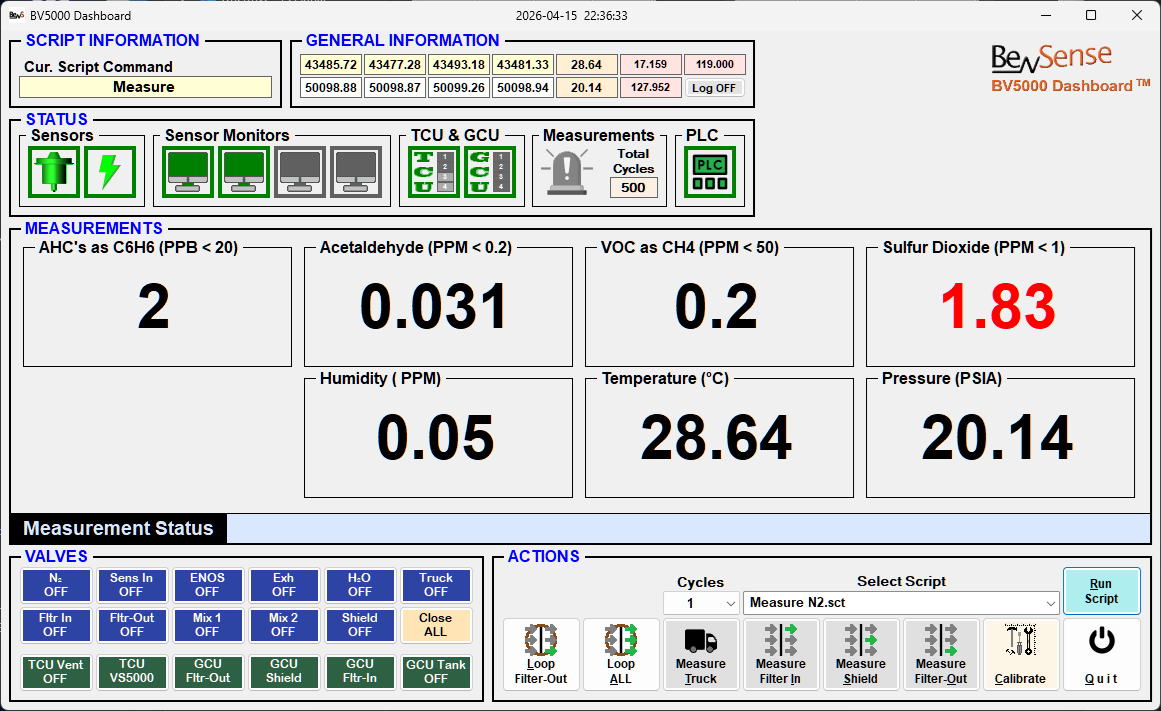

The VS5000 Dashboard is the control center for the VS5000 system. The VS-5000 Dashboard lets you individually control all of the input valves do a zero correction and Calibration of the VS5000 CO2 Gas Purity Sensor. A VS5000 Dashboard license is included with every purchase.

BevSense - VS-5000 Dashboard Software

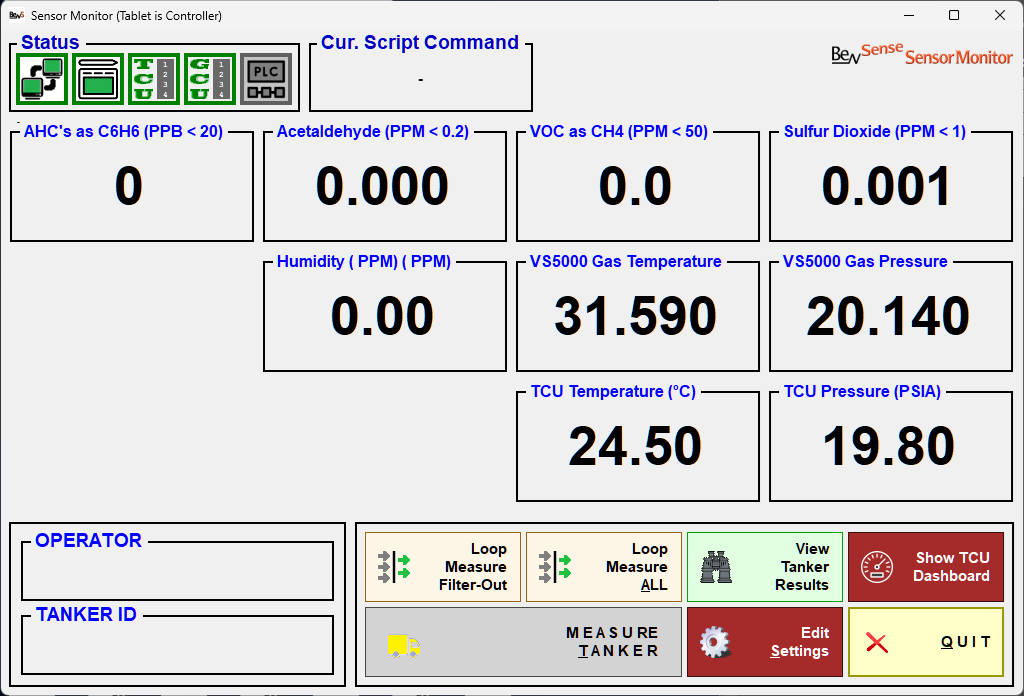

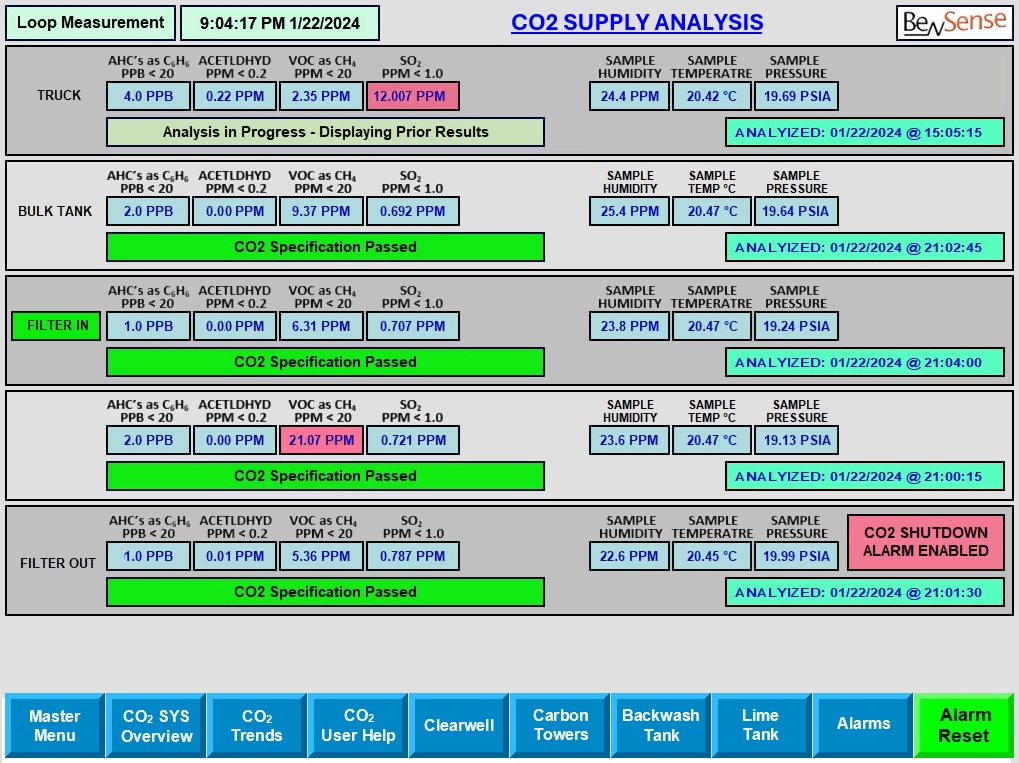

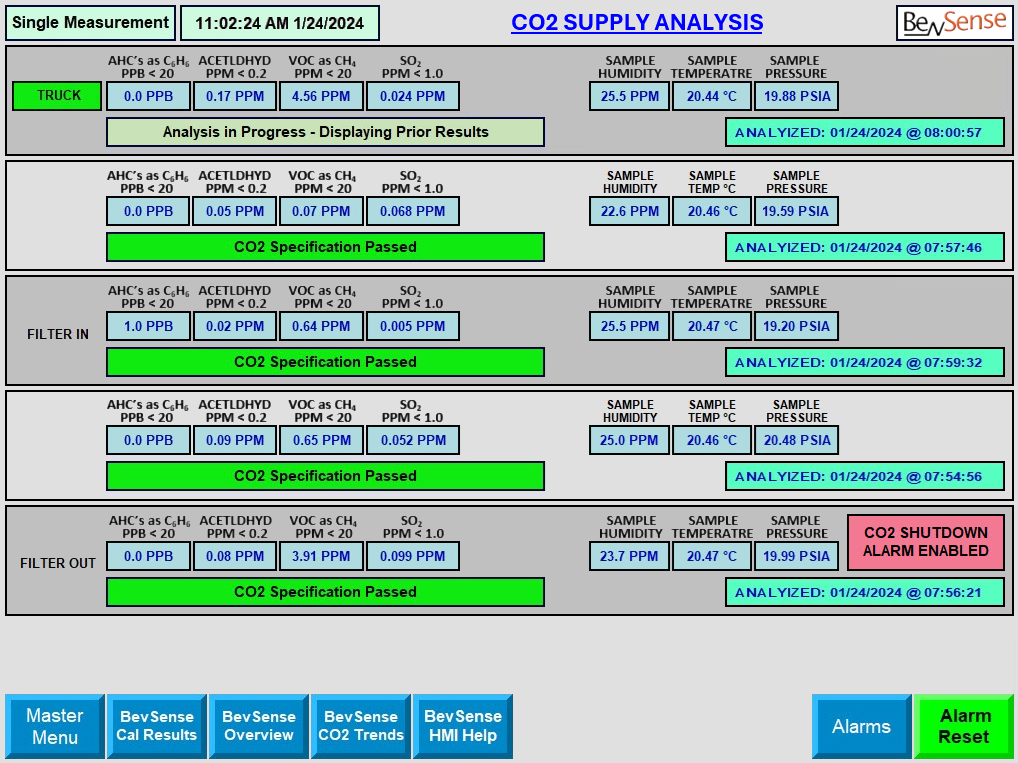

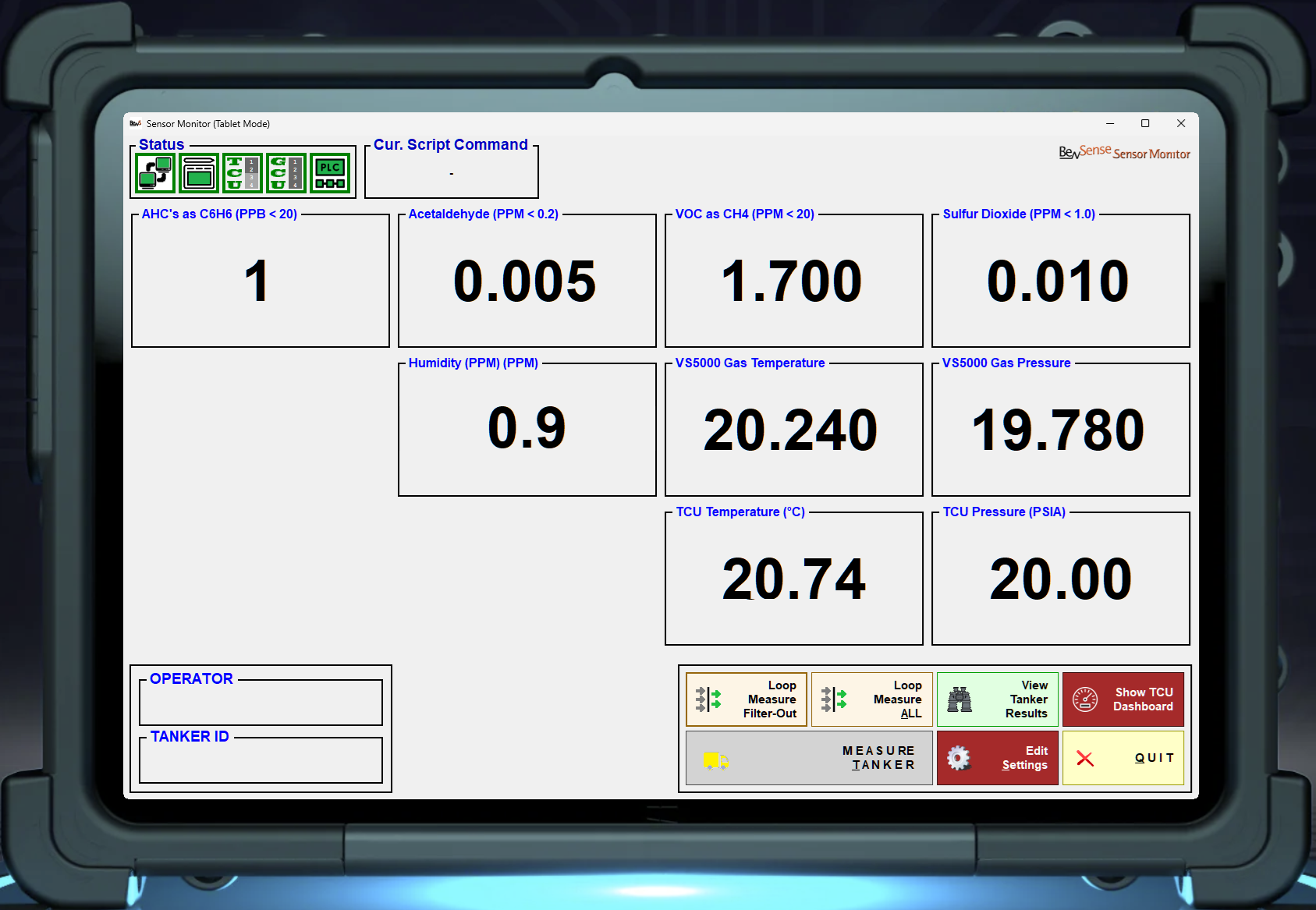

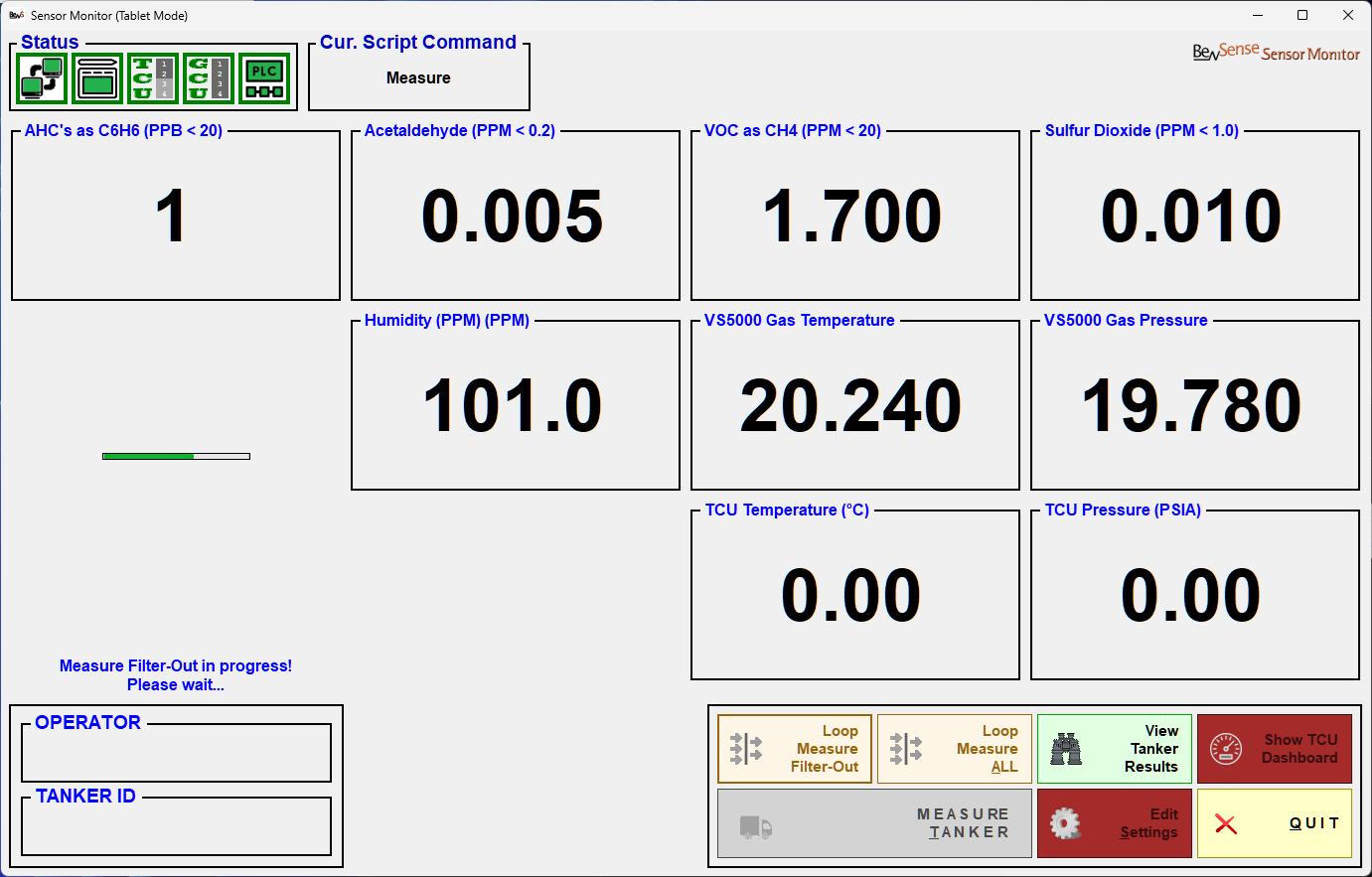

VS5000 Sensor Monitor

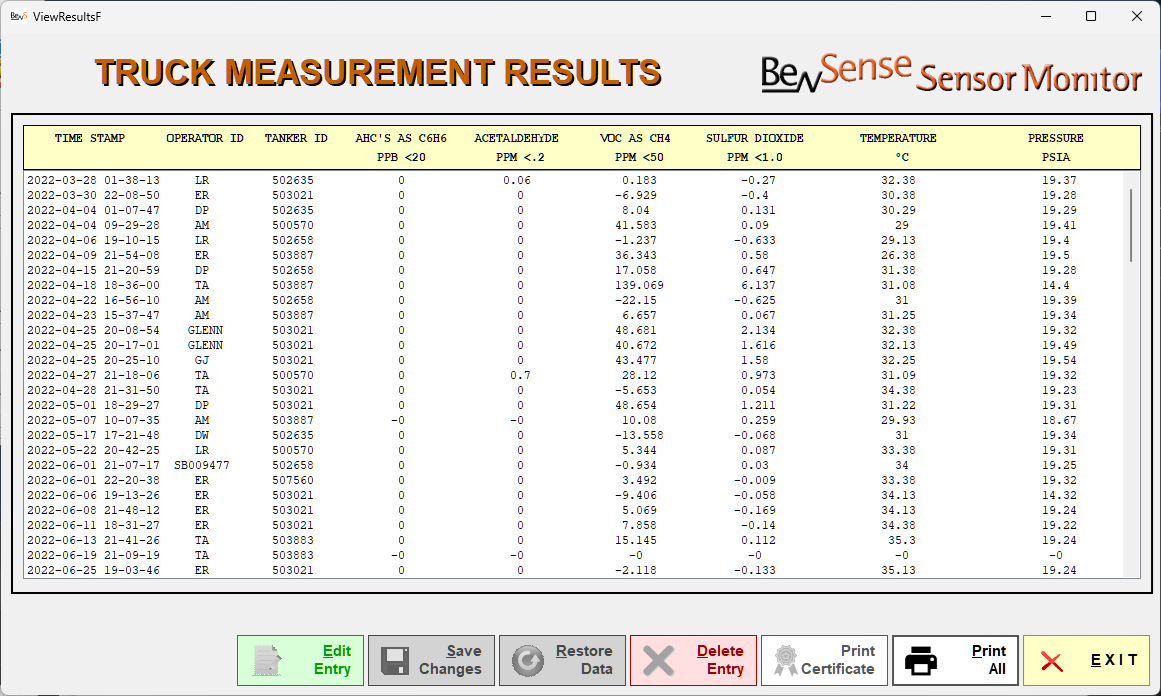

The VS-5000 Sensor Monitor is a Windows-based PC client software application software. For a user to have real-time sensor control at their fingertips, all that is required is an Ethernet connection. Easy-to-read displays repeat data collected by the Sensor Management Station and provide graphs and intuitive log files. The Sensor Monitor is used to Automatically do all functions associated with Measuring an Incoming Truck.   Doing a continuous measurement of the output of the CO2 Purity filter or doing a series of continuous measurements at the CO2 tank, before the CO2 purity filter and after the CO2 purity filter to prevent contamination first getting into the factory and second to find internal contamination problems before the CO2 goes out of specification. A VS5000 Sensor Monitor license is included with each instrument purchase

BevSense - VS-5000 Sensor Monitor Software
